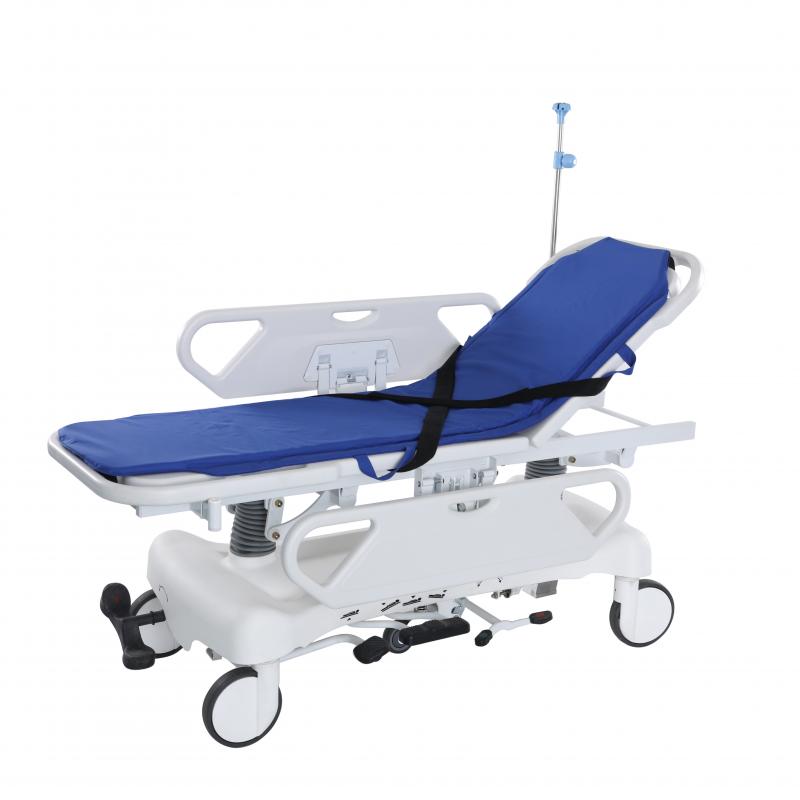

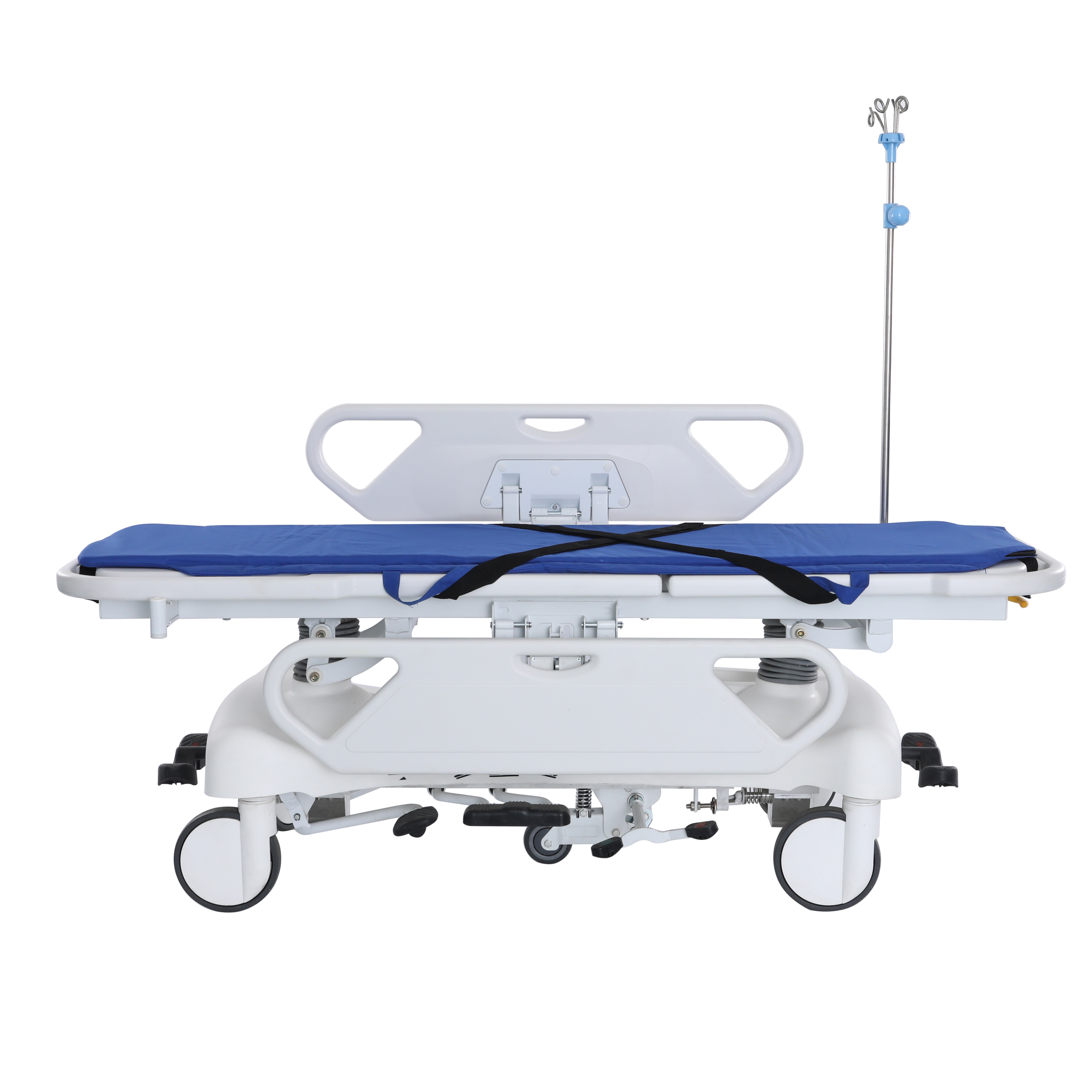

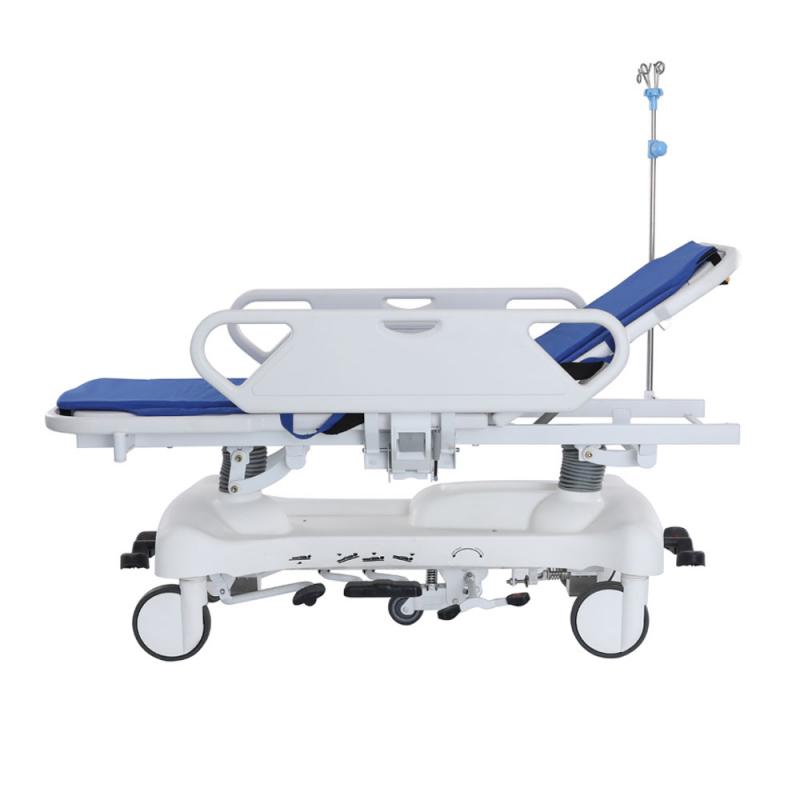

Hospital Trolley Patient Transfer Bed
Product name | JZ2001A Emergency Transfer Bed |
Material | Cold rolled steel pipe bed frame,electrostatic powder on the surface. |
Bed size | 193*70*63~93cm(Length*width*height) |
Board size | 193*70cm(Length * width) |
The height of the bed above the ground: 63~93cm. | |
Basic parameters | Back section adjustable from 0 to 75º. |

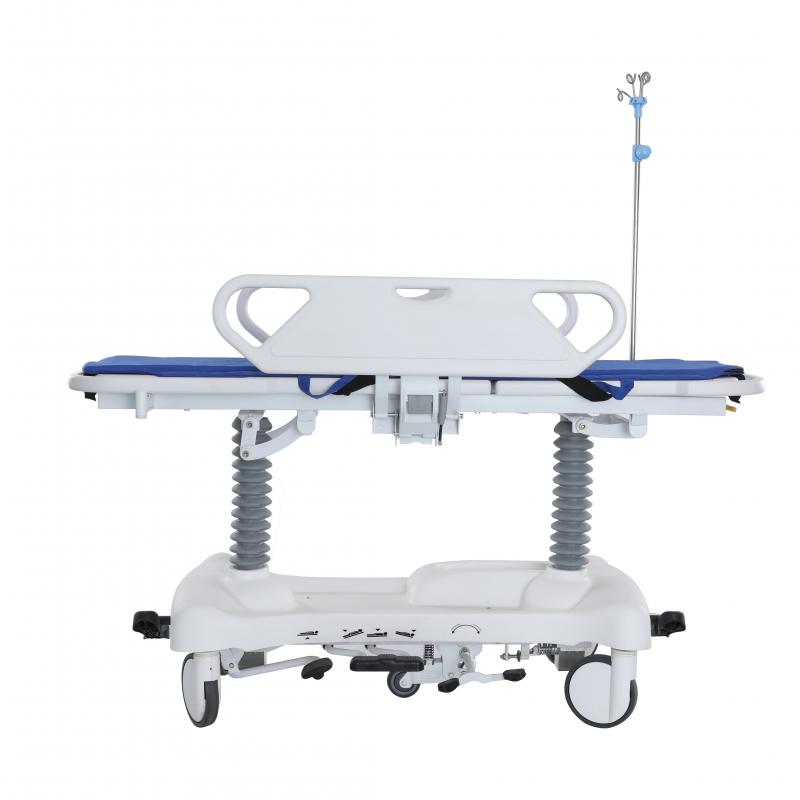

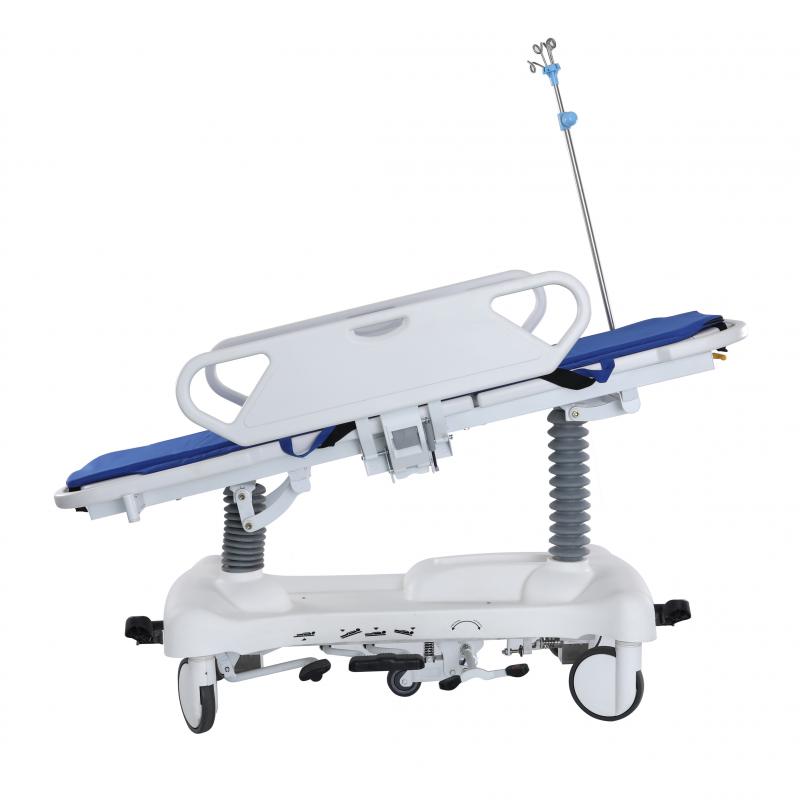

Trendelenburg and reverse trendelenburg from 0 to 15º. | |
Configuration | Side rails 2pcs, ABS, detachable, the back is operated by a gas spring, the middle casters have middle casters for steering, hydraulic pump. |
Packing material | Wooden box |
Net weight | 100kg |
Gross weight | 130kg |
Package dimensions | 216*81*71cm |
Accessories details:
* The guardrail adopts ABS lifting and lifting guardrail, and the lowering adopts the gas spring buffer design, which improves the comfort and the service life of the guardrail.
* High-quality material, the car surface is made of ABS engineering injection molding, which has the characteristics of flame retardancy, corrosion resistance, and strong toughness.
* The back is adjustable, and the back damper imported from Italy is used as the supporting force source, which is convenient and simple to operate.
* It adopts the national advanced central control braking system, which is stable and reliable. It is equipped with a guide wheel device, which can be easily operated by one person and 360° steering.
* With a thickness of 4CM Oxford cloth car pad and 2 safety straps, it can effectively protect the patient during emergency transportation, and is equipped with an infusion rod, which is convenient for patients to infuse infusion therapy during transportation.

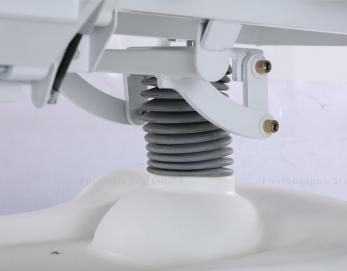

 | Through the control lever, the silent gas spring operation is adopted, so that the back and legs can be raised and lowered. |

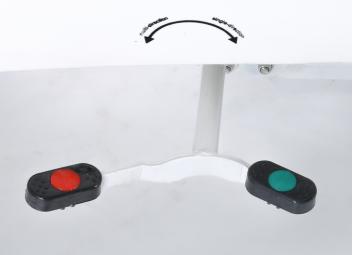

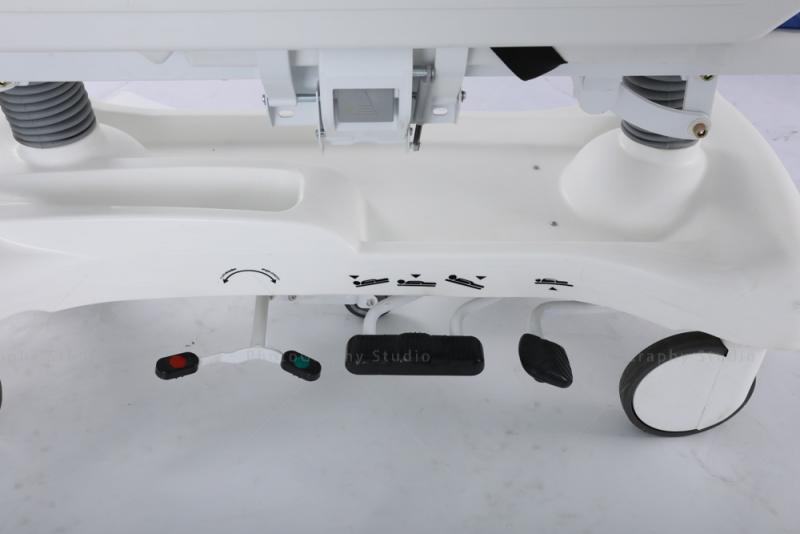

The stretcher has a fifth wheel which provides ideal maneuverability and stability for the stretcher. Green is one-way driving, red is multi-directional driving. It can be decided according to the different needs of users. |  |

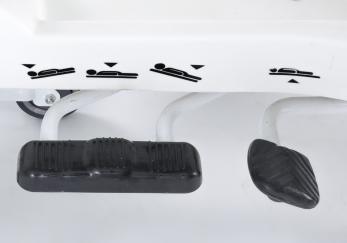

 | There is a "bed surface raising control footboard" on both longitudinal sides of the "chassis" of the transfer bed. When the bed surface is raised, you can step on any one of them to rise. |

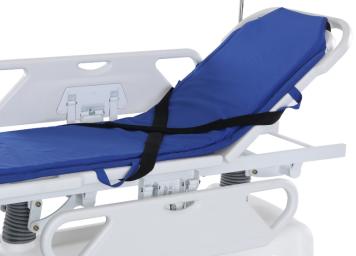

The stretcher is equipped with two restraint belts, which can fix the patient well and prevent the patient from shaking during exercise. |  |
